How Integrated Control Systems Deal With Electrical Noise From VFDs

Variable frequency drives make motor control more efficient, but their fast electrical switching can introduce noise into nearby control circuits.

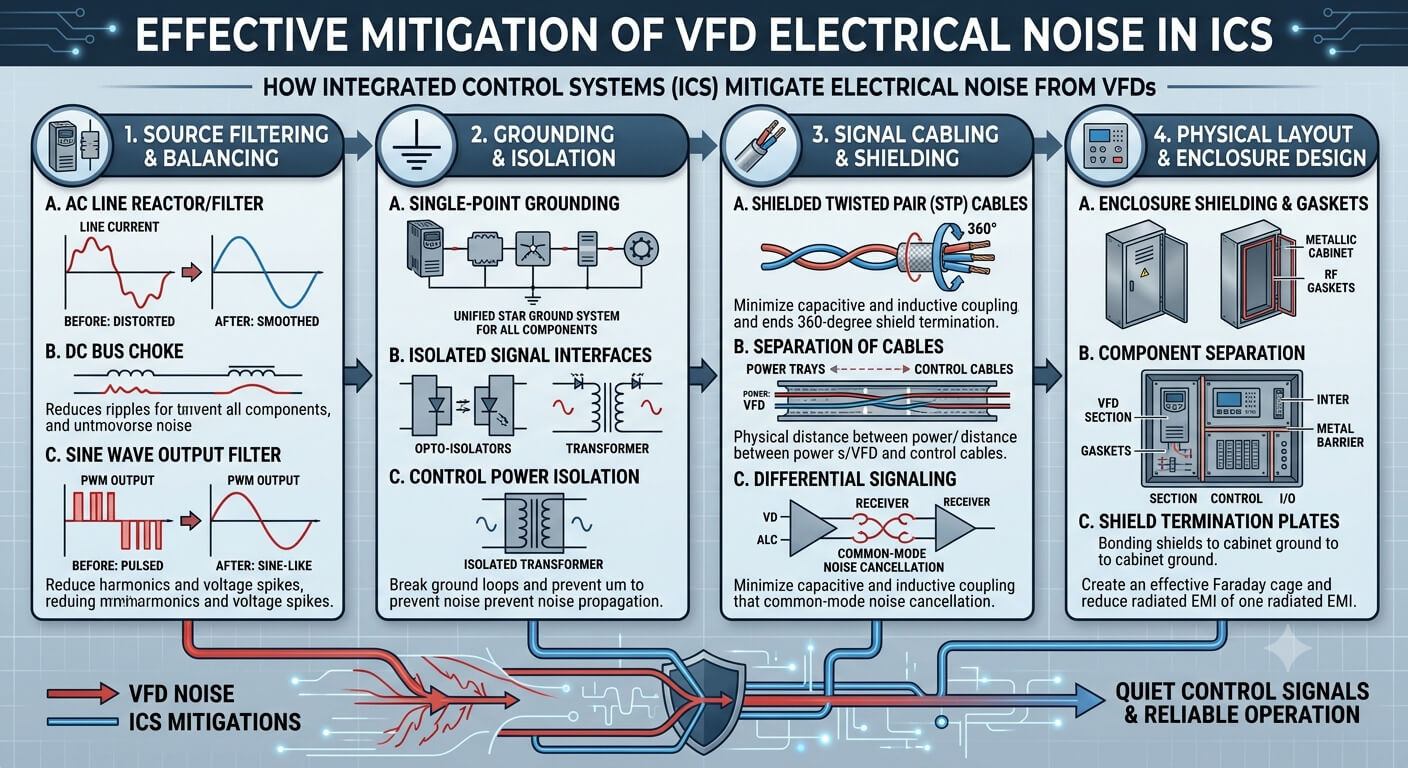

Interference may show up as unstable analog readings, false inputs, communication errors, or sensors that behave normally until a drive starts running. Properly designed integrated control systems reduce those problems through cable layout, grounding, shielding, filtering, and careful control-panel design.

VFD Switching Creates Noise That Can Travel Beyond the Motor Circuit

VFDs create variable-frequency power by rapidly switching semiconductor devices on and off, producing steep voltage transitions that contain high-frequency energy.

Those transitions can couple into nearby conductors through electric or magnetic fields, especially where motor leads run beside low-voltage instrumentation cables for long distances.

Experienced industrial automation system integrators account for this behavior before equipment is installed by reviewing drive locations, motor cable lengths, surrounding instrumentation, and the paths available for unwanted current. Understanding where interference originates makes it easier to control rather than trying to correct random symptoms after startup.

Why Does Cable Separation Matter So Much Around VFDs?

Physical distance between power and signal wiring is one of the simplest ways to reduce electrical interference. Motor conductors leaving a VFD can carry strong high-frequency components, while thermocouple, encoder, Ethernet, and analog cables may carry signals that are far easier to disturb. Control integrators route these cable groups separately and avoid long parallel runs whenever the layout allows it.

Crossings sometimes cannot be avoided, but designers generally arrange power and control conductors to cross at roughly right angles instead of traveling beside one another. Raceway selection also matters because separate metallic conduit or divided cable tray can provide additional separation in crowded installations. Thoughtful routing becomes especially important for long motor leads, where cable capacitance and reflected-wave effects can increase electrical stress and noise. A few feet of better cable placement can solve problems that software filtering cannot fully hide.

Shielded Motor Cable Gives High-Frequency Current a Better Return Path

Shielded VFD cable surrounds the motor conductors with a conductive layer intended to contain electromagnetic interference and provide a controlled path for high-frequency common-mode current. Proper termination matters as much as the cable itself because long shield pigtails add impedance at high frequencies and reduce shielding performance. Industrial control systems companies commonly use bonding methods that create broad, low-impedance connections at the drive and motor ends when the equipment design calls for them. Correct cable selection also considers voltage rating, insulation, grounding conductors, and the drive manufacturer?s installation requirements.

Grounding and Bonding Can Prevent Noise From Becoming a Signal Problem

Good grounding does more than protect people from electrical faults; it also gives unwanted high-frequency currents a predictable return path. Loose enclosure bonds, painted mounting surfaces, poorly connected grounding conductors, or long indirect paths can force noise through instrumentation circuits instead. An integrator in control system projects examines panel bonds, equipment grounding, motor frames, cable shields, and enclosure connections as one complete system rather than treating each connection separately.

Ground loops require equal attention because multiple unintended return paths can create voltage differences between equipment. Designers may use isolation, proper shield termination practices, or dedicated signal references depending on the type of circuit and manufacturer guidance. Careful bonding also helps reduce common-mode voltage that can affect bearings, communication equipment, and sensitive electronic devices. Grounding decisions should follow the actual electrical design rather than broad rules applied to every signal in the same way.

Filters and Reactors Control Noise Near Its Source

Line reactors, load reactors, dv/dt filters, sine-wave filters, and electromagnetic interference filters address different VFD-related electrical problems. Line-side devices can reduce certain disturbances traveling back toward the facility supply, while output-side components may limit voltage rise rates or improve conditions on long motor cables. Skilled control integrators select these devices according to motor distance, switching frequency, drive specifications, equipment sensitivity, and the type of interference being observed. Installing a filter without identifying the noise path can add cost without fixing the underlying issue.

Sensitive Signals Need More Protection Than Standard Digital I/O

Low-level analog and temperature signals can react to interference that ordinary 24-volt digital inputs ignore. Shielded twisted-pair cable, proper analog grounding, isolated I/O modules, and careful termination help protect signals such as 4?20 mA loops, load cells, RTDs, and thermocouples. Engineers also keep sensitive instrumentation away from drive output terminals and high-current switching components inside control cabinets.

Network communication deserves similar attention because repeated packet errors may appear as random equipment faults rather than an obvious electrical-noise problem. Industrial automation system integrators may review Ethernet shielding, switch placement, connector condition, fiber-optic options, and bonding between cabinets when communication becomes unreliable near drives. Optical fiber can be useful between electrically noisy areas because it carries data with light rather than conductive wiring. Diagnostic counters from managed switches can also reveal intermittent errors that operators would otherwise struggle to reproduce.

Testing Under Load Reveals Noise Problems That Idle Equipment Can Hide

Commissioning should include tests with motors running through realistic speeds, loads, accelerations, and decelerations because interference can change with operating conditions. Technicians can watch analog trends, network diagnostics, input states, grounding conditions, and fault histories while drives operate to identify patterns tied to switching activity. RL Consulting offers electrical control and automation support that can help facilities address VFD-related noise through panel design, wiring practices, grounding, signal integration, and troubleshooting across integrated control systems, providing a practical resource when interference affects reliable machine operation.
